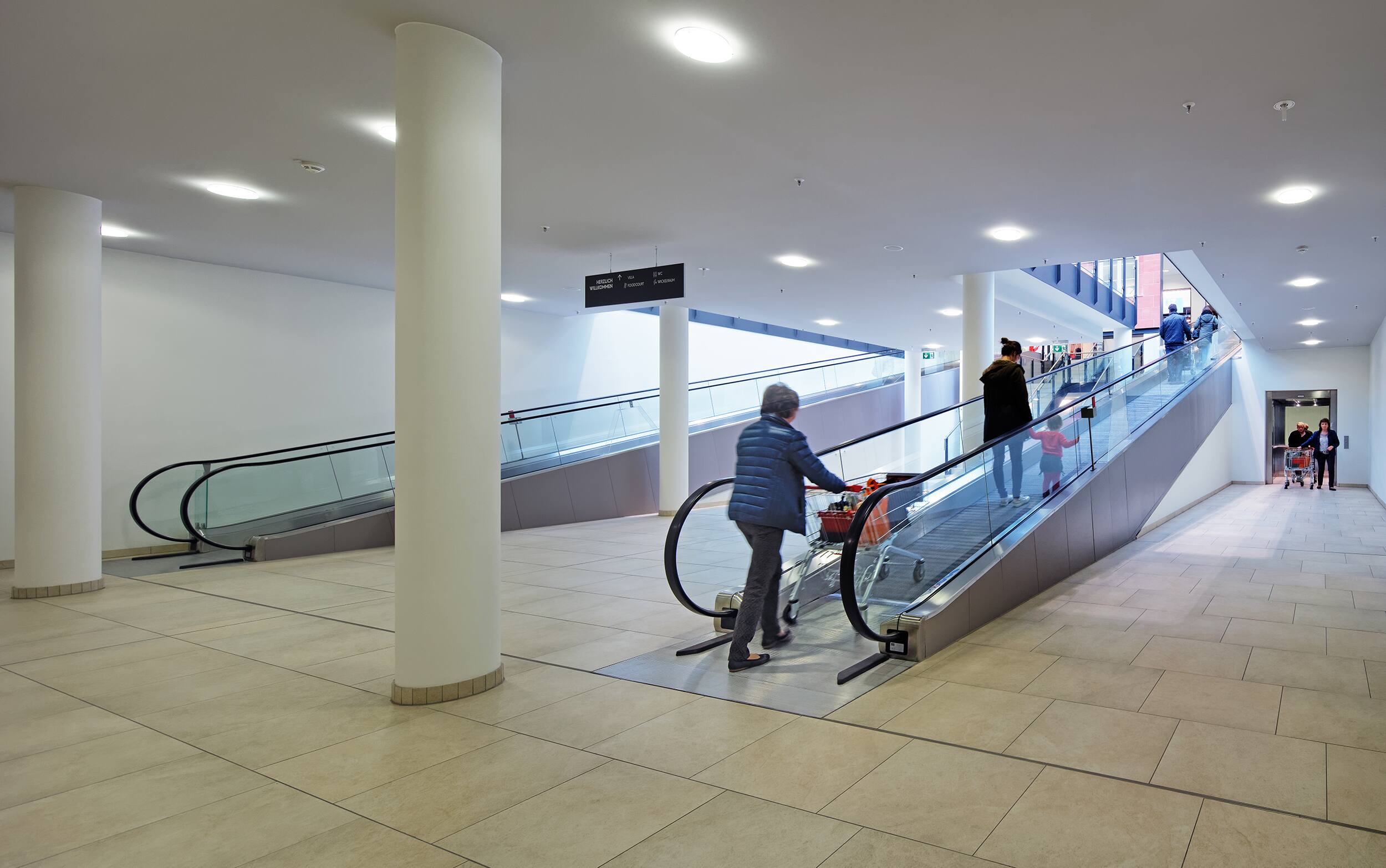

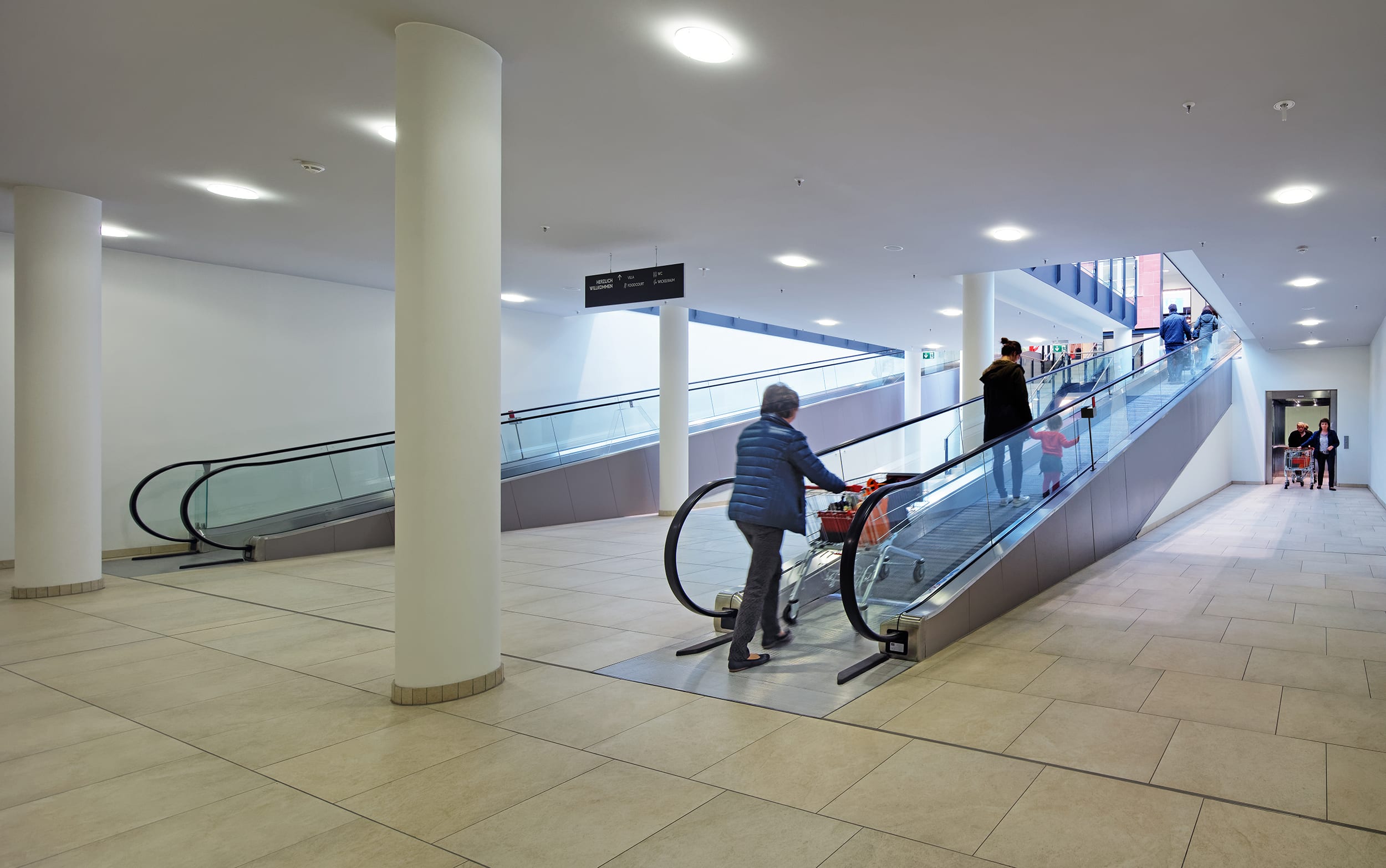

KONE TravelMaster™ 115 Inclined Moving Walkway / Autowalk

Inclined autowalk details

Description

The KONE TravelMaster™ 115 is an inclined autowalk that provides easy and safe access for environments with demanding people flow needs, such as when you need an autowalk for shopping centers, department stores, supermarkets or hypermarkets.

Specifications

  • Operational environment: indoor, semi-outdoor
  • Speed: 0.5 m/s
  • Inclination: 10º, 12º
  • Pallet width: 1000 mm
  • Vertical rise: up to 7 m

Inclined autowalk safety

  • Safety is the starting point for every KONE escalator and autowalk. The KONE TravelMaster™ 115 inclined autowalk conforms to all local and international safety codes.
  • We offer extensive safety options to reduce risk of end-user accidents.

Inclined autowalk options and highlights

Travelmaster 115

INCLINED AUTOWALK ENERGY-EFFICIENCY

Energy-efficient people flow that keep your building moving:

  • Smart operational modes and inverter optimize inclined escalator energy consumption under different load conditions
  • Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
  • An energy efficient inverter provides smooth speed regulation during standby operation and minimizes energy consumption at full speed
  • The optional regenerative technology cuts power consumption by recycling energy and feeding it back into the system
Travelmaster 115

ESCALATOR SAFETY

Peace of mind with the latest safety technology:

  • High (1100 mm)balustrade improves escalator safety with a multiple level inclined escalator layout
  • The pallet loose monitor and Sprialock threaded screw increase escalator safety for passengers and reliability on our pallets
  • New traffic signalization solutions to provide extra guidance
  • Fall-prevention barrier and extended balustrades provide additional passenger protection
  • Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems
Travelmaster 115

INCLINED AUTOWALK DESIGN

Proven, reliable inclined escalator design to provide safe people flow and maximum availability in environments with medium to high traffic:

  • Reduced escalator dimensions frees up more space for commercial activities
  • Real inclinations allows for better inclined autowalk alignment and enhanced visual appearance of the building
  • Flexible intermediate support placement allows easier integration with the building
  • Innovative and attractive inclined autowalk lighting solutions that also improve passenger guidance and escalator safety
  • A wide range of inclined escalator design options to create stunning visual effects and perfectly match your building’s architecture
  • High quality component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

Tools and downloads

Escalator Planner

Escalator Planner helps you select the right product as well as create detailed specifications, BIM equipment models and CAD drawings for preliminary planning.

Escalator Designer for TravelMaster 115

A handy tool for architects and consultants to quickly generate and print out initial dimension drawings for the KONE TravelMaster 115 inclined autowalk.

KONE TravelMaster™ 115

This guide details the options and planning dimensions for the KONE TravelMaster 115 inclined autowalk, which is designed for retail environments like shopping centers and hypermarkets.

KONE Escalator and Autowalk Solutions

Our flexible range of escalators and autowalks can be tailored to a wide range of applications, and are all based on the same reliable technology and modern visual design.

KONE Solutions for retail facilities

We can help you turn people flow into cash flow – whether you’re planning and designing a new facility or upgrading your existing equipment.

Escalator and autowalk solutions

Product name
Description (+type)
Segment
Maximum rise
Speed
Inclination
Duty cycle
Environment
TravelMaster 110
escalatorCommercial, retail, hotel, office
13 m
0.4, 0.5 m/s
30°, 35°
12-16 hours/day
Indoor, outdoor, semi-outdoor
TravelMaster 115
Inclined autowalkCommercial, retail, hotel, office
7 m
0.5 m/s
10°, 12°
12-16 hours/day
Indoor, semi-outdoor
TransitMaster 120
escalatorInfrastructure
15 m
0.4, 0.5, 0.65, 0.75 m/s27.3°, 30°, 35°20-24 hours/dayIndoor, semi-outdoor, outdoor
TransitMaster 140
escalatorInfrastructure
22 m
0.4, 0.5, 0.65, 0.75 m/s30°20-24 hours/dayIndoor, outdoor
TransitMaster 165
horizontal autowalkInfrastructure
15-60 m
0.4, 0.5, 0.65, 0.75 m/s
0-6°
20-24 hours/day
Indoor, semi-outdoor
TransitMaster 185
horizontal autowalkInfrastructure
15-100 m
0.4, 0.5, 0.65, 0.75 m/s
0-6°
20-24 hours/day
Indoor, semi-outdoor
KONE InnoTrack
horizontal autowalk
Infrastructure
15-60 m
0.5, 0.65 m/s

20-24 hours/day
Indoor
